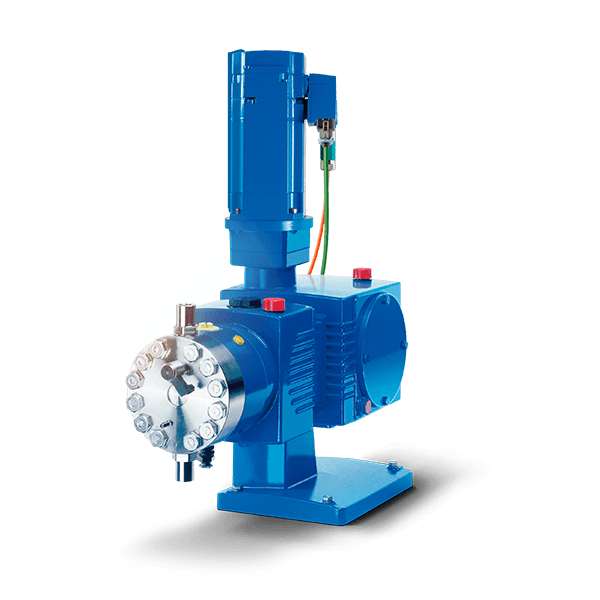

LEWA intellidrive diaphragm metering pump

LEWA intellidrive®
diaphragm metering pump

The LEWA intellidrive technology can be used to design the pump's suction and discharge stroke and individually model the pumping characteristics!

The highly dynamic servomotor modulates the pump's stroke according to the demands of your system and process. The stroke adjustment normally required for metering pumps can then be omitted. The LEWA intellidrive diaphragm metering pumps implement flow volumes up to 4 m³/h and discharge pressures up to 1000 bar.

LEWA intellidrive® diaphragm metering pumps
metering pumps for special fluid kinematics.

Fluids with special kinematics are pumped in many filling tasks and high-precision chromatography processes in the pharmaceutical industry. We developed the LEWA intellidrive technology for this purpose. The highly dynamic servomotor makes it possible to regulate the pump's stroke times in an infinitely variable manner, thus modeling individual pumping characteristics according to the demands of your system and process.

This intelligent motion control also enables the metering of highly viscous fluids and facilitates metering of very small volumes, even over very wide control ranges. In combination with a second pump, nearly pulsation-free volume flows can be generated through accurate synchronization.

intellidrive technology is available as either a LEWA ecoflow diaphragm metering pump or ecodos diaphragm metering pump.

LEWA intellidrive diaphragm metering pump

Good reasons for a LEWA intellidrive®

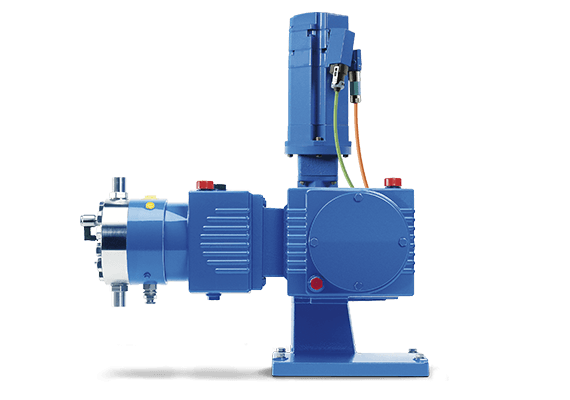

LEWA intellidrive pumps are mechatronic diaphragm metering pumps with intelligent drive technology via servomotor. The innovative servomotor drive features various advantages compared to other drive technologies.

High Viscosity

Fluids with high viscosities

Through the decelerated suction stroke, the LEWA intellidrive is very well suited for fluids with high viscosities up to 100000 mPa∙s e.g. honey. This characteristic makes LEWA intellidrive unique in comparison to other pumps.


Control systems

Easy integration into higher-level process control systems

Interfaces such as Ethernet and Profibus ensure problem-free system integration. Pumps can be integrated as field equipment in the higher-level process control technology. Prefabricated plugs on the pump motor connect the supply and signal lines with the control unit. Analog inputs and outputs, for example for valve control, can be expanded.


Wide adjustment range

Large adjustment range

Precision is our strength: The drive of the LEWA intellidrive metering pump can be configured in an extremely large control range of at least 1:150. This allows us to fulfill the most stringent requirements for sensitive metering tasks, for example in the pharmaceutical industry.


Suction-pressure stroke

Individual suction and discharge stroke characteristics

The LEWA intellidrive technology can be used to model, program and save individual suction and discharge stroke characteristics. Using various suction and discharge stroke frequencies, high-viscosity fluids are drawn in slowly and with low pressure loss via the smaller valve nominal width – and then quickly fed to the process in the discharge stroke.


Synchronization for pulsation reduction

Synchronization of pumps for pulsation reduction

By using two synchronized intellidrive pumps, a virtually pulsation-free volume flow can be generated. Therefore, the piping system, in some cases, can make do without pulsation dampers. These are often hard to clean, particularly in hygienic applications.


Precise filling tasks and fluid chromatography

Infinitely variable stroke times permit fluids with special kinematics to be moved successfully. This makes it terrifically well suited as a metering pump in filling tasks or in highly precise chromatography systems in the pharmaceutical area.

Suitable for the smallest flow rates

The LEWA intellidrive implements extremely small flow rates up to 1 ml/h with precision. No other industrial pump reaches the degree of precision often required in pharmaceutical and biotechnological processes.

API 675 standard

The intellidrive series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance. We would be happy to present you with further certifications, if desired.

Product videos

Options

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Heating and cooling jacket

With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

Special design materials

If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

Diagnostic connection

Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

Integrated pressure relief valve

An integrated pressure relief valve prevents potential overload situations. The valve is individually adjustable and can be adapted to different operating situations.

Sanitary & hygienic Design

LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

CIP and SIP capability

Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.

Complete documentation

In the process of documentation, we consider your requirements and provide inspection records, print samples, diagrams of output characteristics and registration papers on request.

Product range

With various pump heads, the LEWA intellidrive diaphragm metering pump covers a large performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.

Drive unit data

Type Stroke length [mm] Plunger rod force [N]
LDB 15 2000
LDC 15 5000
LDD 30 7000
LDE 30 20000

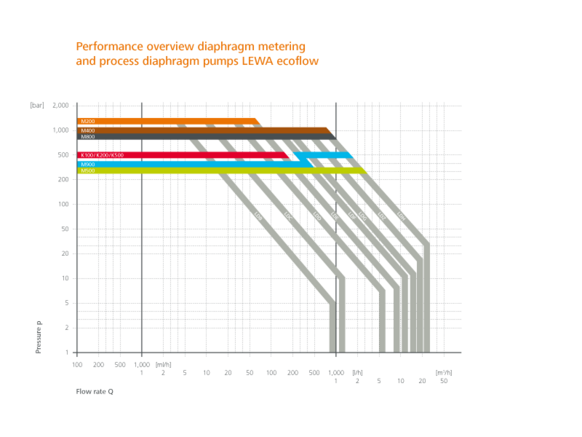

Performance overview

Performance overview LEWA metering pumps
Pump type/flow rate [l/h] Permitted pressure for stainless steel [bar] Permitted pressure for plastic [bar]
      VA PVC PVDF
2 20 12 80 60 80
4 20 12 80 60 80
6 20 12 80 60 80
12 20 12 80 60 80
25 10 10 80 60 80
50 10 10 80 60 80
90 10 10 80 60 80
180 10 10 80 60 80
350 7.5 7.5 80 60 80
550 7.5 7.5 80 60 80
750 5 5 80 60 80
1100 5 5 80 60 80
1500 5 5 80 60 80

Installation dimensions

Save space and weight through multiplex arrangement of pumps or arrangement in the compact boxer design.

Installation dimensions

Type L [mm] B [mm] H[mm]
LDB 400 400 260
LDC 450 500 320
LDD 700 750 610
LDE 800 900 690

Pump head variants

We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.

Pump head ecodos

Pump head ecodos: Mechanically actuated diaphragm pump head with monitored four-layer PTFE sandwich diaphragm; very robust pump head technology for pressures up to 20 bar.

Type ecodos
Pressure 20 bar
Flow rate 1,5 m³/h
Temperature +80 °C
Viscosity 500 mPa∙s
Operational capability Can be installed on all intellidrive ecodos diaphragm metering pumps.

Pump head M900

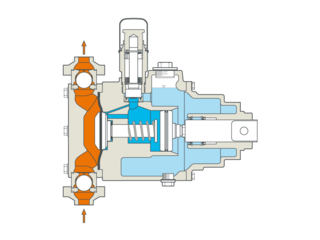

State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational reliability The patented DPS technology also enables a suction lift cabability that is globally unique in the field of hydraulically actuated diaphragm pumps. Can be installed on all ecoflow pumps.

Type M900
Pressure 500 bar
Flow rate 6 m³/h
Temperature -20/+150 °C
Viscosity 100.000 mPa∙s
Operational capability Can be installed on all ecoflow diaphragm metering pumps.
LEWA pump head M900
LEWA pump head M900

Pump head M200

Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.

PumpenType M200
Pressure 1.200 bar
Flow rate 5 l/h
Temperature -40/+200 °C
Viscosity 500 mPa∙s
Operational capability Can be installed on all intelldrive ecoflow diaphragm metering pumps ≤ LDE.
LEWA pump head M200, M400
LEWA pump head M200-M400
