LEWA metering system

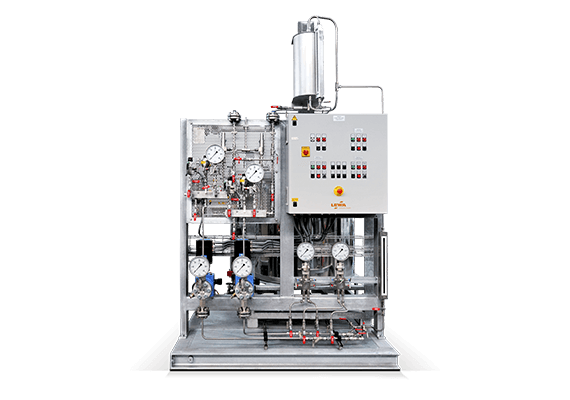

Customer-Specific Metering Systems from LEWA

Is there a special procedure in your production process that requires a custom metering system? Then you've come to the right place: For more than 60 years, LEWA has been creating customer-specific metering systems and handling every process phase from planning and production through to installation and maintenance.

We create flow rates between 10 ml/h and 180 m3, and discharge pressures of up to 1200 bar.

Metering systems from LEWA
A custom-designed system for every application.

Metering, cooling, heating, controlling, regulating – our customer-specific metering systems ensure the interaction of the pump, instrumentation, and accessories. LEWA takes your application and specification, your interface logic, and your ideas into consideration and implements them accurately and comprehensively.

We handle all the preliminary planning, on-site data collection, and testing and calculation of the secondary systems and pressure conditions. The metering system or filling system is integrated into your new or existing plant.

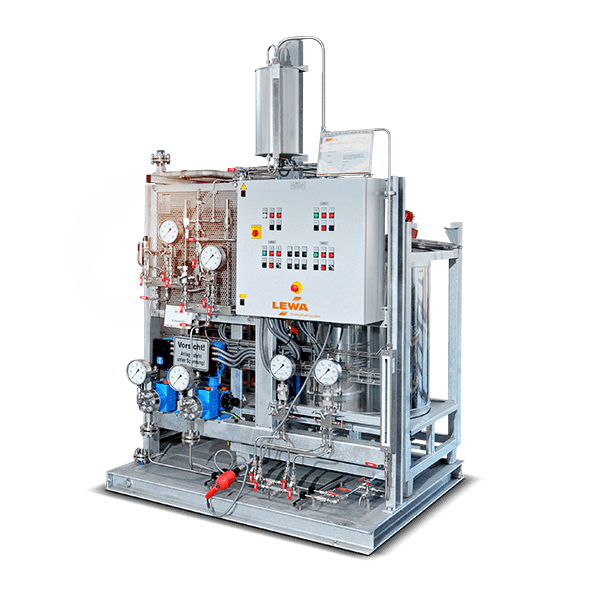

LEWA metering system

Good reasons to choose a metering system from LEWA

LEWA designs and builds turnkey metering systems in closed loop control with monitoring and plausibility testing equipment for various production processes.

Experience and consulting

Years of experience for perfect metering system designs

We have many years of experience in mixing liquids of different viscosities at various temperatures and pressure levels. And we use this knowledge when creating customer-specific metering systems for companies in various industries.


Customer-specific Design

Experts in metering and injection processes

Our process expertise, which creates perfect results in metering and injection processes, is in demand across the world. We also have a wealth of experience in dealing with required dwell times, idle periods, post-mixing, and heat addition and removal for process reactions.


Smartcontrol Controls

The control system as the intelligence center of the metering system

Precise, fast control of the metered flow in the case of changes to setpoint values or other deviations ensures that the end product is always of top quality. This is achieved by a control system developed by LEWA, which continuously monitors the plausibility of set values and actual values. Our systems are equipped with PLC interfaces to Profibus DP, CAN, MOD-Bus or Ethernet, for example.


Heart of the system

LEWA pumps are at the heart of our systems

We prefer to use our own diaphragm metering pumps manufactured in-house for our metering, mixing and filling systems. These are characterized by continuous stroke length and speed adjustment, ensuring an accurate and wide adjustment range. Pressure has virtually no influence on the metering characteristic, which makes monitoring easy and precise. What's more, high metering accuracy paired with a flow measurement and monitoring system ensures reliable and reproducible production.


Integration of third-party components

Our expertise also helps when it comes to integrating other pump types, provided that these lead to a better result based on the application, the flow rate or the composition of the pumping fluid: All components are adapted to meet your requirements perfectly.

Compliance with all international standards and norms

We clarify all national and international standards and regulations, as well as customer-specific and product-specific requirements, during the design phase. Our systems are developed in accordance with TÜV, API, and other specifications.


LEWA supplies metering systems that meet customer requirements perfectly. To achieve this, we use our tried-and-tested modular system with various components in line with the needs of the specific application.

Basic componentsAdditional components
  • LEWA diaphragm metering pumps or alternatives
  • Piping
  • Base frame
  • Vessels
  • Control/regulation systems
  • Control cabinet
  • Cooling/heating elements
  • Flow meters
  • Filters
  • Pressure monitoring systems
  • Shut-off fittings

Options

Intellidrive technology

Using the highly-dynamic servomotor, you can adjust the stroke of the pump to the requirements of your system and your process.

Different drive types

We flexibly react to environmental conditions: Pumps in our Chemical Injection Packages are driven by electric (solar energy), compressed air, gas or diesel engines.

CIP/SIP capability for pharma applications

For applications in pharmaceutical, cosmetic and food industry, we offer our pumps and systems in sanitary & hygienic design, which fulfils all standards and norms.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Pipelines according to all standards

The piping of our systems can be designed according to different standards: dairy pipe, DIN, ANSI, JIS, Ermeto, Swagelok, Aminco HP, Tri-Clamp etc.

Examination by experts and authorities

We also gladly provide performance diagrams and certificates of static pressure tests also by TÜV, Germanischer Lloyd’s, Lloyd’s R. of S. or other authorities.

Global commissioning

With our global service network, we take your equipment into operation and provide technical service directly at your location - both onshore and offshore.

Complete documentation

Receive supporting documents and certificates, including the operating instructions, as well as design and test details in different languages.

Testing, acceptance and inspection

We make sure that everything works: LEWA offers numerous services, including factory acceptance test (FAT) at the manufacturing site or at your site (SAT), NDT and PMI.

References

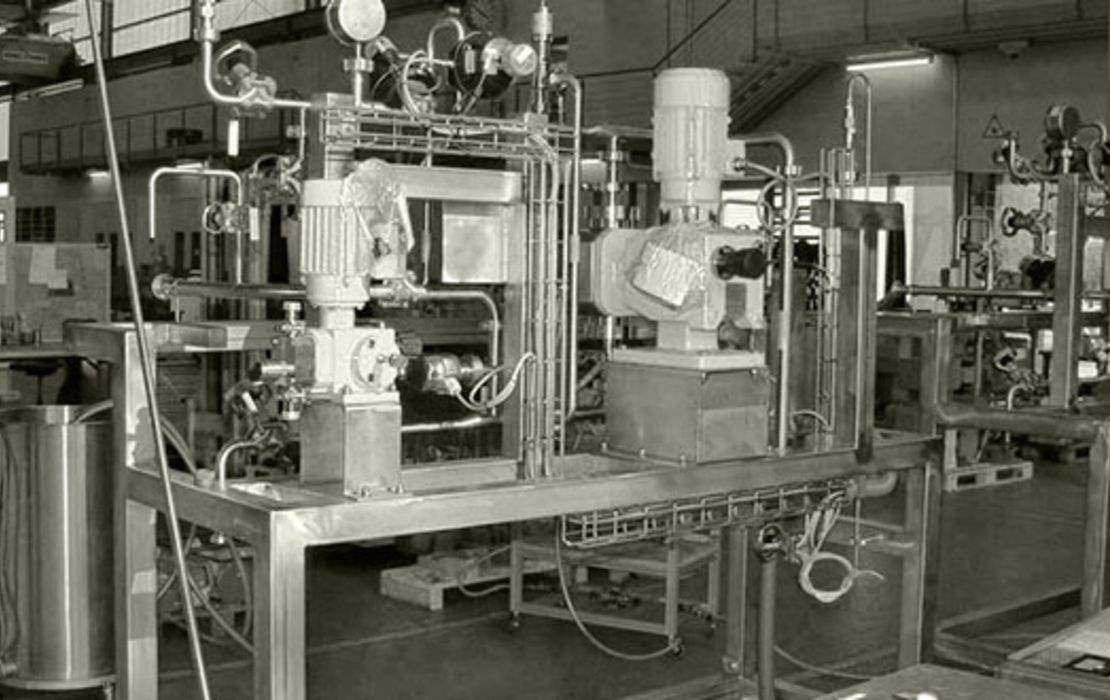

  • CO2 Metering of liquid CO2 (blowing agent)

    CO2 Metering of liquid CO2 (blowing agent)

    CO2 Metering of liquid CO2 (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials the metering of liquid CO2 (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDB1 / M200, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Carbon dioxide3004.2
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion

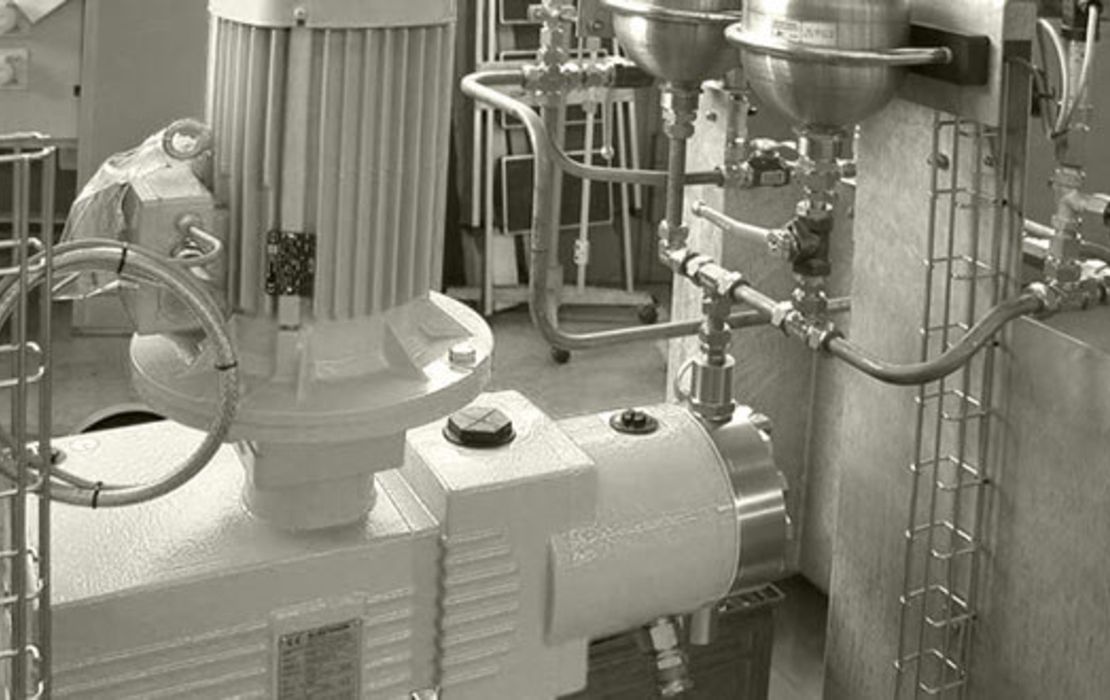

  • Metering of liquid CO2 (blowing agent)

    Metering of liquid CO2 (blowing agent)

    Metering of liquid CO2 (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials the metering of liquid CO2 (blowing agent) is required

    LEWA’s scope of delivery: Skid

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE3 / M200, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Carbon dioxide414100
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents;
    Expanded foam, Extrusion
  • Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials and packaging materials the metering of liquid butane (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDC3 / M910S, mass flow meter, piping, filter, pressure regulator and control cabinet with LEWA smart control controller

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA smart control

    FluidPressure in barFlowrate in l/h
    Butane34030
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of antistatic agent

    Metering of antistatic agent

    Metering of antistatic agent

    The customer’s challenge: In a refinery process additives have to be reliably metered

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely installed in container with 2 LEWA ecoflow diaphragm metering pumps, type LDB / M900, for hazardous area zone 1, including pulsation damper, strainer, valves, pressure transmitter and mass flow meter

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Antistatic agent1450
    MarketProcess
    Petroleum Refining / RefineriesAdditive (final products i.e.fuel,wax)
  • Metering of butane (blowing agent)

    Metering of butane (blowing agent)

    Metering of butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulating material a metering system for butane (blowing agent) is needed

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm pump, type LDD3 / M910, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Butane35088
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials a metering system for liquid butane (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE3 / M900, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Butane350100
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of dispersion of polymers

    Metering of dispersion of polymers

    Metering of dispersion of polymers

    The customer’s challenge: For the manufacturing of roofing tiles a metering system for dispersion of polymers is needed

    LEWA’s scope of delivery: Skid

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE1 / M900, reduced pulsation at 2 different pressures, 2 pressure retaining valves, control unit

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Polymer80300
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsDispersions
  • Metering of flame retardant

    Metering of flame retardant

    Metering of flame retardant

    The customer’s challenge: In the production of plastics flame retardant has to be metered

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely electrical heat traced and insulated, with 1 gear wheel pump, storage tank, strainer, valves, mass flow meter and control cabinet, for operating temperature of 80 °C

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Flame retardant13714
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsPolyester

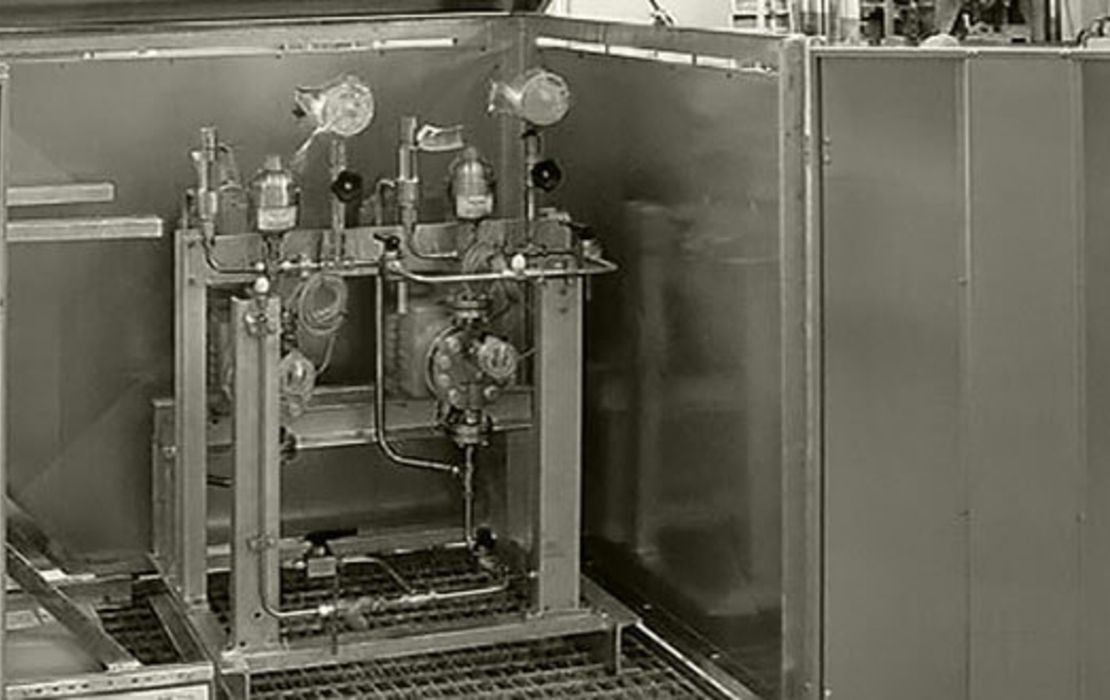

  • Metering of flame retardant (Irganox 1081)

    Metering of flame retardant (Irganox 1081)

    Metering of flame retardant (Irganox 1081)

    The customer’s challenge: In the production of plastics the metering of flame retardant is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely installed in heated cabinet, with 1 LEWA ecoflow diaphragm metering pump, type LDB1 / M900, strainer, valves, mass flow meter and control cabinet, with melting tank 50 l, for operating temperature of 100 °C.

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Flame retardant2014
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsPVC - E-PVC
  • Metering of chlorofluorocarbon (CFC) (blowing agent)

    Metering of chlorofluorocarbon (CFC) (blowing agent)

    Metering of chlorofluorocarbon (CFC) (blowing agent)

    The customer’s challenge: For the manufacturing of insulating packing material the metering of chlorofluorocarbon (CFC), freon 152 a as blowing agent is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDC3 / M910, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Foaming agent30030
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of citric acid

    Metering of citric acid

    Metering of citric acid

    The customer’s challenge: In an extraction process citric acid shall be reliably metered

    LEWA’s scope of delivery: Skid

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecodos sanitary pump, type 550

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecodos sanitary / hygienic

    FluidPressure in barFlowrate in l/h
    Citric acid5550
    MarketProcess
    Chemical / Pharmaceuticals / CosmeticsBasic operations (separating, extract.)
  • Disposal of hydrocarbon condensate

    Disposal of hydrocarbon condensate

    Disposal of hydrocarbon condensate

    The customer’s challenge: Hydrocarbon condensate is a waste product during the production of natural gas. For the disposal hermetically tight process diaphragm pumps are required

    LEWA’s scope of delivery: Pump

    Delivery in detail: 2 LEWA triplex process diaphragm pumps, type LDE3 mounted on a base frame with roof

    LEWA main product/s: Custom-designed skid & package

    FluidPressure in barFlowrate in l/h
    Hydrocarbon condensate992,000
    MarketProcess
    Onshore / Oil & GasGas production, Onshore

Technical data

Thanks to our tried-and-tested modular system plus our extensive portfolio of pumps, we can create custom systems that always meet customer requirements exactly.

Performance data

Discharge pressure, min. [bar] Discharge pressure, max. [bar] Flow rate, min. [ml/h] Flow rate, max. [ml/h] Operation, min. [°C] Operation, max. [°C] Viscosity [mPa∙s]
0 1200 10 180 -40 +400 < 1500000

Installation dimensions*

We consistently ensure that the footprint of our systems is kept to a minimum. Pumps, gear units, motors, and piping always have the most compact design possible.

L [m]W [m]H [m]Segment weight** [max. to]Vessel [m³]
10.03.54.03250

* Installation dimensions are approximate
** Larger systems in modular design; other limitations may be imposed by transport restrictions and installation dimensions approved by the customer.

Industries

Oil & Gas
Oil & Gas

Oil & Gas

You can rely on 60 years of experience in the construction of pumps, packages, skids, and systems for onshore and offshore oil and gas production. Take a look at the information now!
Read more

Gas Odorization
Gas Odorization

Gas Odorization

LEWA odorizes gas: Custom units or tried-and-tested systems – we supply exactly what you need!
Read more

Refineries
Refineries

Refineries

We have been supplying pumps and systems for distillation plants for processing crude oil for 60 years. Ask our experts for more information!
Read more

Petrochemicals
Petrochemicals

Petrochemicals

LEWA provides durable pumps and metering systems for various processes in the petrochemical industry. Ask our experts for more information!
Read more

Chemicals
Chemicals

Chemicals

LEWA supplies you with individual chemical pumps and customized system solutions for various areas of application in the chemical industry.
Read more

Plastics processing
Plastics processing

Plastics processing

LEWA supports you in plastics processing with custom-built plants and systems. Ask our experts for more information!
Read more

Cleaners & Detergents
Cleaners & Detergents

Cleaners & Detergents

We offer reliable, formula-controlled systems for the production of cleaners and detergents. Ask the LEWA experts for more information now!
Read more

Personal Care
Personal Care

Personal Care

LEWA is your reliable partner in the production of personal care products. Our systems meet the strictest quality and hygiene requirements. Take a look at the information now!
Read more

Pharmaceutical, Life Sciences & Biotech Industries
Pharmaceutical, Life Sciences & Biotech Industries

Pharmaceutical, Life Sciences & Biotech Industries

LEWA supplies pumps and systems for the pharmaceutical, life sciences, and biotech industries that comply with all hygienic requirements. We're happy to help you with advice!
Read more

Food & Beverage Industry
Food & Beverage Industry

Food & Beverage Industry

Use LEWA pumps and system solutions for your homogenization processes in the food and beverage industry. Ask our experts for more information!
Read more

Energy Utilities
Energy Utilities

Energy Utilities

We supply pumps and systems for power plants and power suppliers. Find out more about LEWA system solutions for the energy utility industry.
Read more

Applications

Downloads

Contact person

  • Sales Office Poland
  • LEWA NIKKISO Austria GmbH (Sp. z o.o.) Oddział w Polsce
  • +48 22 6358-204
  • info@lewa.pl

Find the right product series by using the navigator.

Pump-Navigator

Don't miss any news. Subscribe to our newsletter.

Register now
